Ball Valve Assembly: Key Steps For Quality Assurance

Whether used in chemical plants, water treatment facilities, or HVAC systems, the quality of ball valve assemblies directly impacts operational safety and efficiency. This article outlines essential steps in the assembly process to ensure consistent quality for ball valve parts, including flanged ball valves and actuator ball valves.

Understanding Ball Valve Components

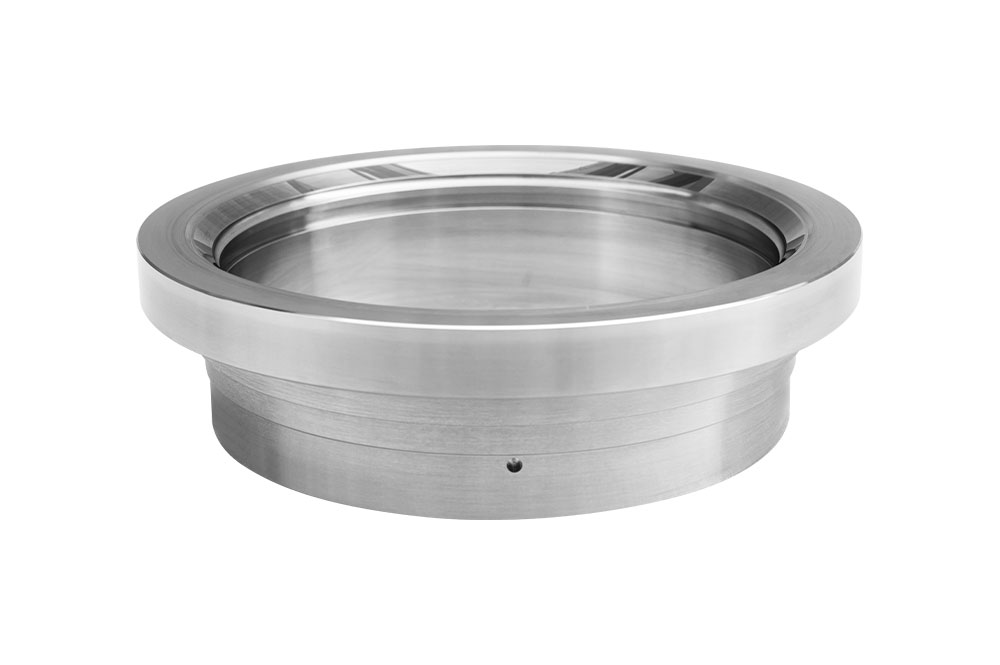

A ball valve assembly consists of several key parts: the valve body, the ball element, seats, stem, seals, and end connections. Each of these ball valve parts must meet precise specifications to ensure a proper seal and smooth operation. The valve body houses the ball, which rotates to open or close the flow path. The seats provide the sealing surface, while the stem connects the ball to the actuator or handle for manual or automated control.

Flanged ball valves are commonly used where piping sections need to be securely connected. The flanged ends provide ease of installation and maintenance by bolting the valve between pipe flanges. On the other hand, actuator ball valves incorporate a mechanical or electrical actuator, enabling remote or automatic valve operation, which is crucial in automated systems.

Step 1: Inspection of Incoming Ball Valve Parts

Quality assurance begins with the careful inspection of all incoming ball valve parts. Each component must be verified against technical drawings and material specifications. This includes checking the dimensions of the valve body, the surface finish of the ball, and the integrity of the seals and seats.

Dimensional inspections are typically conducted using calibrated measuring instruments such as micrometers, calipers, and coordinate measuring machines (CMM). Visual inspections focus on detecting surface defects like scratches, pits, or corrosion, which could compromise sealing performance.

Material certification documents should accompany each batch of parts to confirm compliance with industry standards. These certifications provide traceability and help ensure the use of appropriate materials, such as stainless steel or brass, suited for the valve’s intended application.

Step 2: Cleaning and Preparation

Before assembly, all ball valve parts must be thoroughly cleaned to remove oils, debris, or contaminants that may affect sealing surfaces or moving parts. Cleaning processes vary depending on the material and coating of the components, but generally include ultrasonic cleaning, solvent washing, and air drying.

Proper handling during this stage is critical to avoid introducing new contaminants. Workers should wear gloves and use clean tools to maintain the cleanliness of parts, especially the ball and seats, which require smooth and contamination-free surfaces for effective sealing.

Step 3: Subassembly and Preliminary Testing

Many ball valves include subassemblies such as the stem and seal package, which are assembled separately before final integration into the valve body. During this step, seal rings and packing materials are installed, and the stem is inserted and tested for smooth rotation.

For actuator ball valves, the subassembly phase also involves fitting the actuator mechanism. This includes ensuring that the actuator properly engages with the stem and can turn the ball through the required angle, typically 90 degrees for on/off control.

Preliminary functional tests can be performed on these subassemblies to verify mechanical movement, seal integrity, and the absence of excessive friction or binding.

Step 4: Final Assembly of the Ball Valve

The final assembly involves inserting the ball into the valve body, aligning it with the seats, and securing the end connections. For flanged ball valves, flange bolts are tightened in a cross pattern to ensure uniform pressure and prevent leaks.

During assembly, torque specifications for bolts and fasteners must be strictly followed. Incorrect torque can advance to gasket failure or distortion of the valve body, resulting in leaks or operational issues.

Careful alignment of the ball and seats is essential to avoid premature wear or seal failure. Some assemblies may include spring-loaded seats to maintain contact pressure on the ball, which requires precise installation to function as intended.

Step 5: Pressure and Leak Testing

Once assembled, the ball valve undergoes pressure testing to confirm its sealing performance. This typically involves applying air or liquid pressure to the valve while it is in the closed position and checking for leaks around the body, flanges, stem, and seat areas.

Testing pressures and methods vary depending on valve size and application but generally follow recognized standards such as API, ANSI, or ISO guidelines. Leak detection techniques include visual inspection for bubbles during air tests or pressure decay measurements for liquid tests.

For actuator ball valves, operational tests verify that the actuator can open and close the valve under pressure without excessive force or delays. This ensures reliable remote operation and confirms compatibility between the actuator and valve components.

Step 6: Documentation and Traceability

Documentation plays an important role in quality assurance. Every ball valve assembly should be accompanied by detailed records including inspection reports, material certificates, test results, and assembly instructions.

Traceability allows manufacturers and end users to track each valve’s production history, which is vital for maintenance, warranty claims, and regulatory compliance.

Step 7: Packaging and Shipment

The final step in quality assurance is proper packaging to protect the ball valve during transportation. Flanged ball valves and actuator ball valves are typically wrapped with protective materials and placed in sturdy crates or boxes.

Packaging should prevent mechanical damage, moisture ingress, and contamination. Proper labeling with handling instructions and part identification ensures smooth logistics and prevents errors upon delivery.

Quality assurance in ball valve assembly involves meticulous attention to detail across all stages, from inspection of ball valve parts to final testing and packaging. Each step contributes to reliable valve performance in various industrial applications. Whether assembling flanged ball valves or actuator ball valves, following a structured quality process supports long-term durability and customer satisfaction.
