Development Of Anti-Leak Valve Stem Assemblies

Among the various components of a valve, the valve stem is a key part that directly influences sealing performance and long-term integrity. This article discusses the development of anti-leak valve stem assemblies, focusing on innovations that support ball and seat check valves, high performance ball valves, and the commonly used two piece valve stem structure.

The Importance of Anti-Leak Features in Valve Assemblies

In pressurized systems, even a minor stem leak can advance to system inefficiency, contamination, or, in severe cases, hazardous accidents. As industries evolve, there is increasing demand for valve stem assemblies that offer more reliable sealing over longer service periods, particularly in systems that deal with aggressive media, temperature fluctuations, or high cycling operations. The anti-leak design of valve stems plays a significant role in extending the life of ball valves and improving their performance across applications.

Design Focus: Two Piece Valve Stem

The two piece valve stem has become increasingly common in the development of modern valve assemblies due to its flexibility and serviceability. In this design, the valve stem is constructed using two components: the upper stem that interfaces with the actuator or handle, and the lower stem that connects directly to the ball. This configuration helps to distribute operational forces more evenly and allows for better control of seal compression.

One of the key challenges in the two piece valve stem design is preventing leakage around the stem's packing area. To address this, manufacturers are integrating advanced sealing materials such as reinforced PTFE, graphite rings, and spring-loaded packing glands. These enhancements work together to absorb stem movement and maintain consistent sealing pressure, even under thermal cycling and vibration.

Integration in High Performance Ball Valve Systems

High performance ball valves are commonly used in applications requiring higher pressure and temperature resistance. These valves benefit significantly from advanced anti-leak stem assemblies. With the two piece stem structure, the load transferred from the actuator to the ball is more balanced, reducing wear and maintaining seat integrity over time.

To further enhance sealing performance, high performance ball valves often incorporate live-loaded packing systems combined with stem backseat design. The live-loaded packing maintains axial compression on the packing material, compensating for wear and temperature changes, while the backseat feature acts as a secondary seal when the valve is fully open. This design provides an additional layer of protection against leakage in demanding conditions.

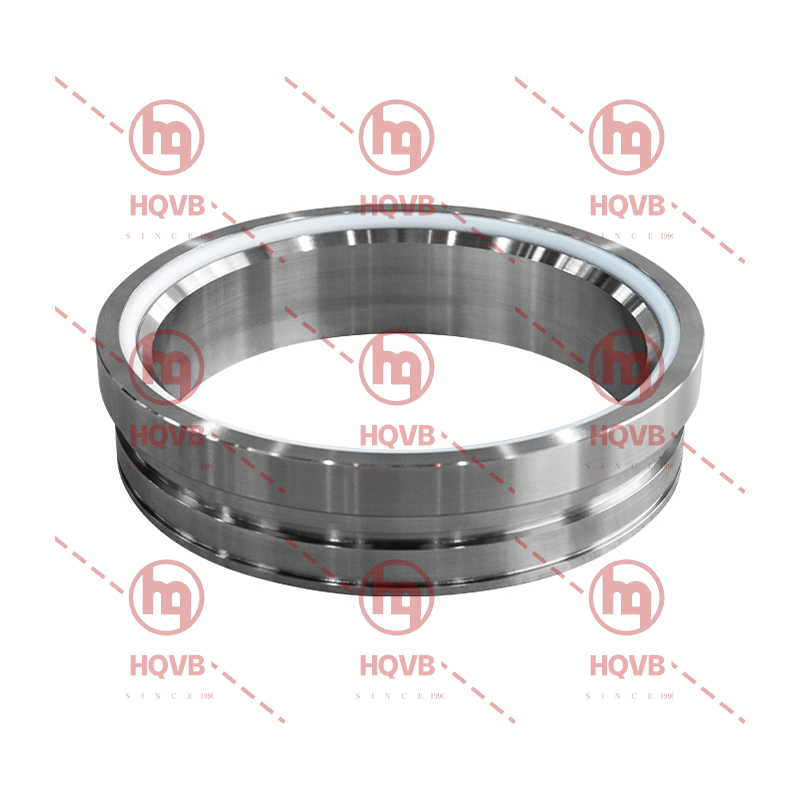

Compatibility with Ball and Seat Check Valves

Ball and seat check valves are essential for preventing backflow in piping systems. They rely heavily on tight sealing between the ball and seat, and although the stem plays a less direct role in sealing performance than in rotary valves, anti-leak features in the stem are still important, particularly in dual-function designs where the check valve may also be operated manually.

In such valves, stem sealing is critical to ensure that when the valve is in manual override mode, fluid does not escape from the stem area. Enhanced stem assemblies that are designed for leak prevention allow ball and seat check valves to be safely used in applications such as oil and gas processing, chemical handling, and high-purity systems.

Testing and Validation of Anti-Leak Designs

The development of anti-leak valve stem assemblies is supported by rigorous testing procedures. Stem packing leakage tests are conducted under both static and dynamic conditions. These tests simulate actual working conditions, including fluctuating pressures and temperatures, to evaluate the effectiveness of the sealing system.

Torque testing is also performed to measure the force required to operate the valve under different packing loads. A balance between low operational torque and high sealing efficiency is key to a reliable anti-leak valve stem assembly. In addition, thermal cycling tests ensure that materials can expand and contract repeatedly without compromising the sealing interface.

Material Considerations and Surface Treatments

Material selection for valve stems is crucial in enhancing sealing performance and corrosion resistance. Common materials include stainless steel, Monel, and duplex alloys. Surface treatments such as hard chrome plating or nitriding are often applied to improve wear resistance and reduce stem scoring, which can otherwise compromise packing integrity.

Furthermore, stem threads and sealing surfaces are precisely machined to tight tolerances. This level of precision has fewer gaps that can serve as leak paths and ensures a stable interface with the packing material.

The development of anti-leak valve stem assemblies has become an essential part of modern valve engineering, particularly for high performance ball valves, ball and seat check valves, and systems using two piece valve stems. Through advancements in design, material selection, and sealing technology, manufacturers continue to improve the reliability of valve stem assemblies. These developments not only enhance operational safety but also contribute to longer service intervals and reduced maintenance costs for industrial fluid systems.
