Innovation In Stem Design For Better Performance

In the evolving world of industrial flow control, the ball valve remains a crucial component in many systems, from water distribution to oil and gas operations. While the general structure of ball valves is widely understood—consisting of a ball and seat valve mechanism to regulate flow—subtle advancements in individual parts have continued to improve reliability, durability, and overall functionality. One such area of focus is the stem design, which plays a key role in ensuring consistent performance and preventing leakage. This article explores the impact of recent innovations in ball valve stem design and how these improvements contribute to better system efficiency, particularly in configurations like the double seat ball valve.

Understanding the Role of the Stem in Ball Valves

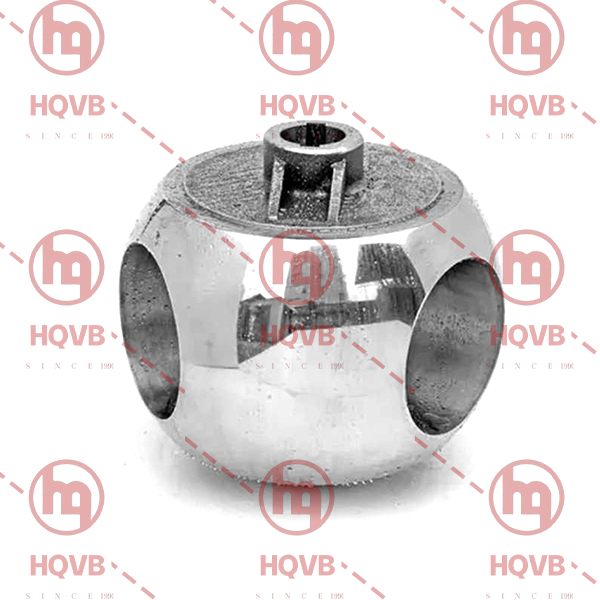

The stem in a ball valve connects the actuator or handle to the ball itself. It is responsible for rotating the ball within the valve body to allow or block fluid flow. Because the stem penetrates the valve body, it is a potential leakage path. Therefore, both the stem design and the stem seal are critical in maintaining a secure, leak-free connection.

In traditional ball valve designs, the stem was often the weakest link when it came to pressure containment and wear resistance. Problems such as stem blow-out, misalignment, or seal degradation were not uncommon in older systems. However, with recent innovations, manufacturers have developed enhanced stem geometries and sealing mechanisms that significantly increase both safety and longevity.

Key Innovations in Stem Design

One of the primary changes in modern ball valve construction is the use of anti-blowout stem features. This design ensures that the stem cannot be removed from the valve body when the valve is under pressure. It’s a vital safety feature in high-pressure environments where sudden stem ejection could cause equipment damage or personal injury.

Another significant innovation is the improved surface finish of the stem shaft. By refining the surface texture through advanced machining or coating processes, the friction between the stem and the seal is reduced. This results in smoother operation and decreased wear over time. A polished stem also aids in better sealing, especially when used with modern stem seal materials.

Thread engagement between the stem and the ball has also seen redesigns. Engineers now favor splined or keyed designs over older pin-based connections. These new configurations provide more stable torque transmission and reduce the chances of stem wear, even under frequent cycling or high-torque applications.

Enhanced Ball Valve Stem Seal Technology

Parallel to the structural design of the stem itself, the ball valve stem seal has also undergone notable enhancements. Conventional seals, such as O-rings or V-ring,s are now often replaced or reinforced with more advanced materials like PTFE, graphite, or thermoplastics that can withstand wide temperature ranges and chemical exposure.

Moreover, multiple seal arrangements are increasingly used. Rather than relying on a single seal, dual or triple-seal systems are applied to further reduce the risk of external leakage. This multi-seal approach is especially beneficial in high-pressure systems or environments with aggressive media.

The spring-loaded stem seal is another noteworthy advancement. In this setup, a spring applies constant pressure to the sealing elements, maintaining consistent compression even as components experience wear. This design ensures a long-lasting seal without requiring frequent maintenance or manual tightening.

Impact on Double Seat Ball Valves

The double seat ball valve is known for its ability to provide a tight shutoff in both flow directions. This bidirectional sealing requires precise alignment and a robust mechanism to prevent leakage from either end of the valve. In such valves, the stem design becomes even more critical.

Innovative stem features—such as guided stem movement, advanced sealing packs, and increased shaft rigidity—allow for improved ball positioning and consistent contact between the ball and seat valve surfaces. This results in better sealing performance and reduced operating torque, which in turn extends the lifespan of the valve.

Moreover, in double seat ball valves, the combination of enhanced stem sealing and advanced seat design ensures that maintenance intervals can be extended without compromising safety or performance.

Continuous innovation in ball valve stem design has proven to be a key factor in enhancing overall valve performance. By addressing traditional weaknesses through engineering improvements in both the stem and the ball valve stem seal, manufacturers have made valves more reliable across a wide range of industries. The application of these innovations in complex systems, such as double seat ball valves, demonstrates how even small design changes can advance to meaningful gains in safety, efficiency, and long-term functionality.

As industries demand more durable and efficient flow control solutions, the importance of well-designed ball and seat valve assemblies, supported by advanced stem technologies, continues to grow. These advancements mark a meaningful step forward in achieving dependable performance in challenging operational environments.
